Challenge-Handshake Authentication Protocol is a variation of Authentication Protocol which handles authentication by attaching a challenge.

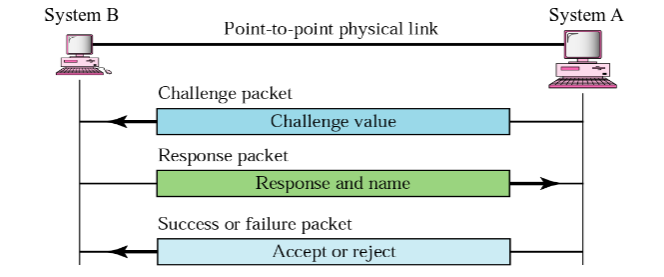

When a connection request is made, system A will create a challenge value (i.e. a hash) based on a password which is stored locally and never transmitted.
It will then send that challenge to system B. If system B generates a matching challenge for it’s own local password, connection is allowed.
Note
This method is generally much more secure than PAP, as it does not transmit the password in plain text.
Packet

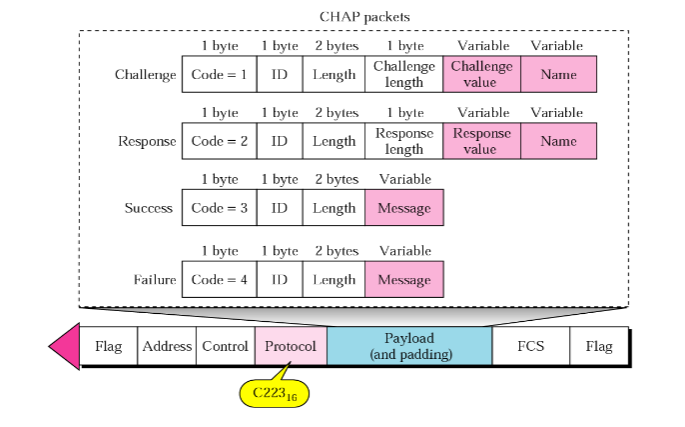

A Challenge-Handshake Authentication Protocol might look like:
